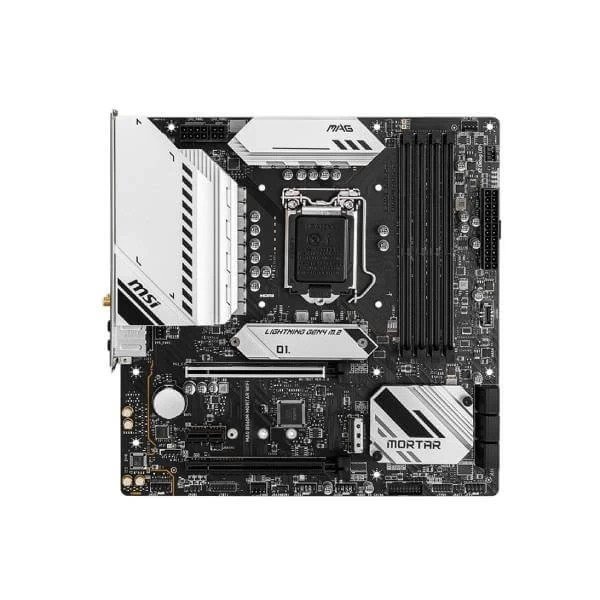

Name: MSI B560M MORTAR WIFI
SKU: 15867
Price: 12500 INR
Availability: OutOfStock

MSI MAG Series B560 Based Micro-ATX Motherboard, Featuring 11th Gen Intel Rocket Lake Support, DDR4 5066 Mhz Memory Support, 2.5 Gigabit Ethernet and Audio Boost For Premium Quality Experience.

Features of MSI B560M MORTAR WIFI

MAG B560M MORTAR

MSI B560M MORTAR Wifi Supports 10th Gen Intel^® Core™, 11th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1200 socket
B560M MORTAR Wifi Supports DDR4 Memory, up to 5066(OC) MHz
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
Audio Boost: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire Technology

MSI Gaming Logo

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

MAG B560M MORTAR WIFI

Conquer the Battlefield with MSI B560M MORTAR WIFI

The MAG B560M MORTAR WIFI is a gaming oriented micro-ATX motherboard constructed around the latest Intel B560 chipset that balances value with cutting-edge hardware.

Supports Intel Core 11th & 10th Gen Processors (LGA 1200)
12 Duet Rail Power System
Lightning Gen4 & Turbo Gen3 M.2 slots with Auto-Switch & Shield Frozr
1 x PCI-e 4.0 x16, 1x PCI-e 3.0 x16 slots (2-Way AMD CrossFire)
4 DIMMS with DDR4 Boost: Dual Channel (128GB Max. / 5066MHz OC)
7.1 HD Audio with Audio Boost
2.5G LAN, Wi-Fi 6E & Bluetooth 5.2

B560 Chipset, 12 Duet Rail Power System, Smart Cooling, PCI-e 4.0 x16


Supports Intel Core 11th Gen Processors The MAG B560M MORTAR WIFI motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: Micro-ATX Socket Type: LGA 1200 Chipset: Intel B560	12+2+1 Duet Rail Power System With its 8+4 pin power connectors and exclusive Core Boost technology, the MAG B560M MORTAR WIFI is able to sustain heavy CPU power loads to support system-demanding game settings: 2-Phase GT Power 1-Phase SA Power 12 Duet Rail CPU Power System Digital PWM IC	Integrated Cooling Features VRM Cooling: Features an extended heatsink and 7W/mK thermal pads. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.	Fortified PCI-e 4.0 x16 MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor) 1 x PCI-e 3.0 x16 slot (CrossFire supported)

Cutting-Edge Performance & Powerful Connectivity


Gen4 & Gen3 M.2 Connectors The MAG B560M MORTAR WIFI motherboard features MSI’s latest M.2 slots (Intel Optane supported): 1 x Gen4 x4 64Gb/s (auto-syncs to either 10th or 11th Gen CPU’s) 1 x Gen3 x4 32Gb/s slots M.2 specifications may vary depending on the CPU installed.	M.2 Shield Frozr Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.	4 x DDR4 Dual Channel (5066 MHz OC) DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are tested by MSI OC LAB and can be easily enabled with auto power settings for optimized memory speed and stability.	Wi-Fi 6E & Bluetooth 5.2 2.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: The latest Wi-Fi 6E solution supports 6GHz spectrum, while Bluetooth 5.2 offers data transfer speeds up to 2400Mbps. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files with high bandwidth rates: 20Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.

PROCESSOR	Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200
CHIPSET	Intel® B560 Chipset
MEMORY	4 x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT	2x PCIe x16 slots Support x16/ x4 PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E3 (From B560 chipset) Support up to PCIe 3.0 1x PCIe 3.0 x1 slot PCI_E2 (From B560 chipset) PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.
ONBOARD GRAPHICS	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics Graphics specifications may vary depending on the CPU installed.
MULTI-GPU	Supports 2-way AMD® CrossFire™ Technology
STORAGE	6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B560 chipset) Supports up to PCIe 3.0×4 Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors
USB	Intel® B560 Chipset 1x USB3.2 Gen 2×2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector 4x USB 2.0 ports on the back panel USB Hubs ASM1074 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel Hub-GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH®	Intel® WiFi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1. Bluetooth 5.2 will be ready in WIN10 21H1.
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning Controller Connector 1x TBT connector (Supports RTD3)
LED FEATURE	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
BACK PANEL PORTS	USB 2.0 DisplayPort USB 3.2 Gen 1 5Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI USB 3.2 Gen 2×2 20Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A Optical S/PDIF OUT
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Weight	1 kg
Dimensions	26 × 25 × 3 cm
Brands	MSI
Chipset	B560
Motherboard Size	mATX
Socket	LGA1200
Platform	Intel
Motherboard Series	MSI MAG

RAM Type	DDR4
Warranty	3 Years
