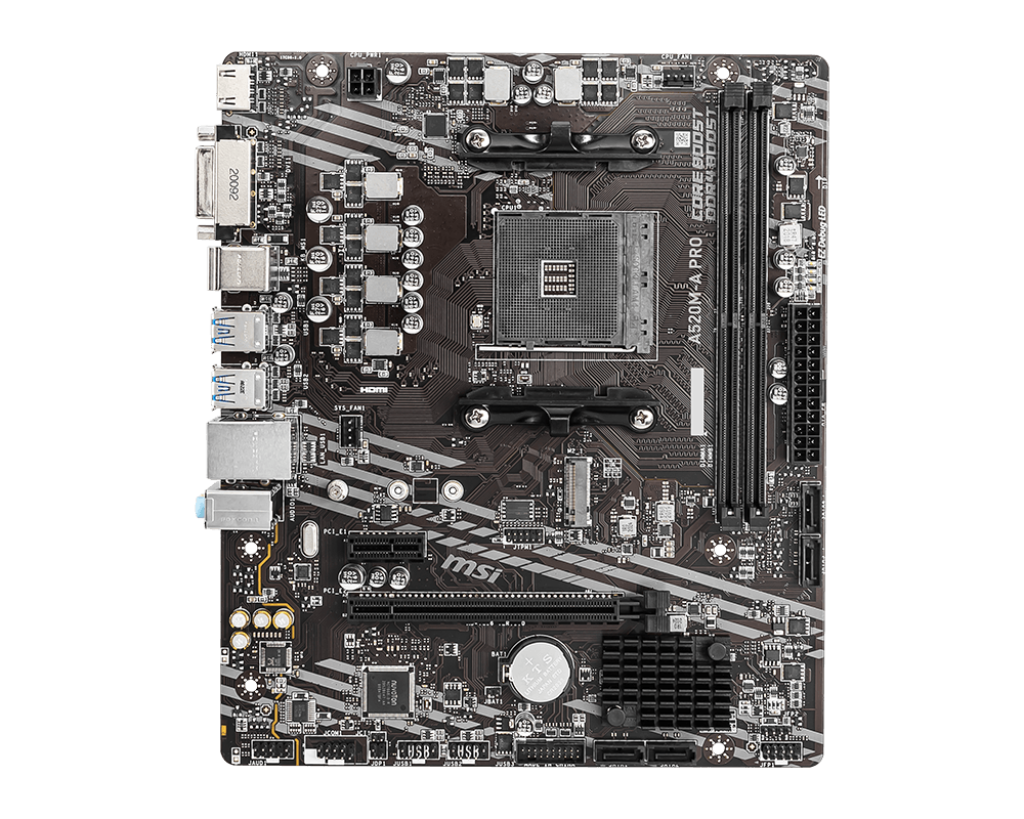

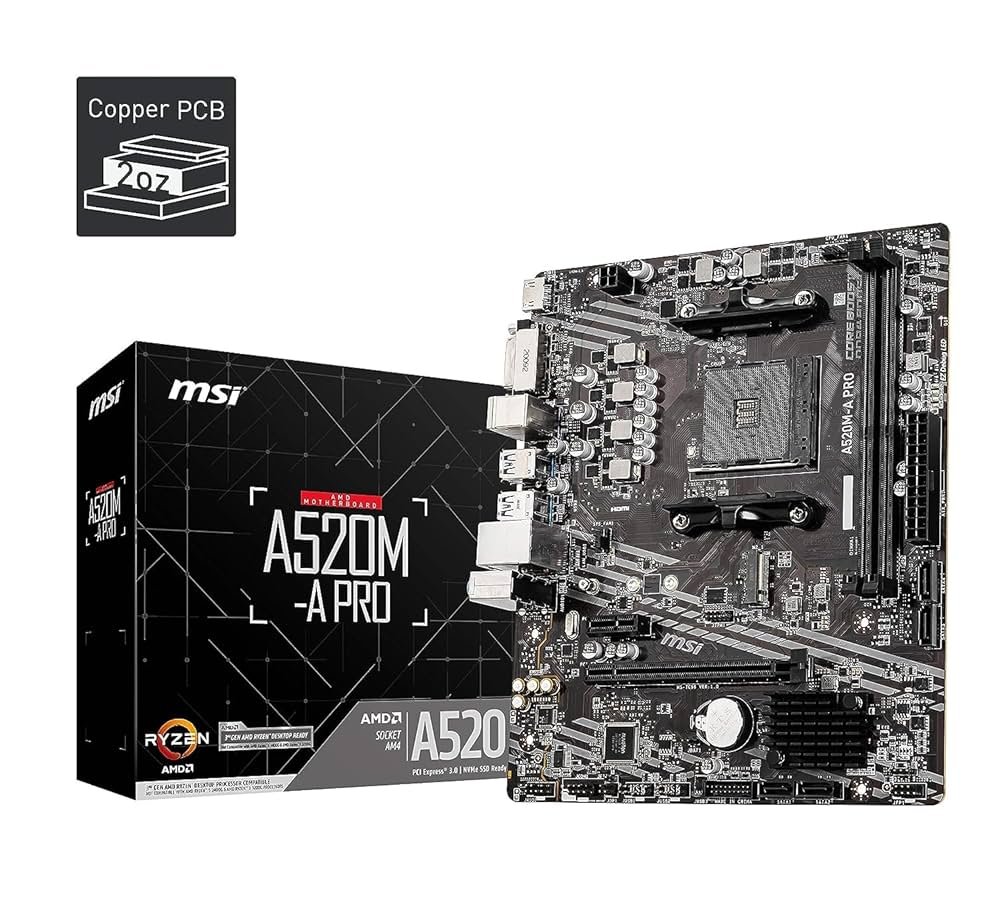

MSI A520M-A PRO Motherboard for reliable performance with AMD AM4 support and DDR4 memory.
Features of MSI A520M-A-PRO:
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Specifications of MSI A520M-A-PRO:
| Model Number | A520M-A PRO |
| CPU | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series processors |
| CHIPSET | AMD A520 Chipset |
| MEMORY | 2x DDR4 memory slots, support up to 64GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| EXPANSION SLOT | 1x PCIe 3.0 x16 slot (from AMD processor) Supports x16 speed with Ryzen™ 5000, 5000G, 4000G processors Supports x8 speed with Ryzen™ 3000G processors Supports x4 speed with AMD® Athlon™ with Radeon Graphics processors 1x PCIe 3.0 x1 slot |
| ONBOARD GRAPHICS | 1x HDMI™ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz Support HDCP 1.4 & 2.3 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz Maximum shared memory of 16 GB |
| STORAGE | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G processors Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors Supports 2242/ 2260/ 2280 storage devices |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| AUDIO | Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8111H Gigabit LAN controller |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper |
| BACK PANEL PORTS | LAN port HDMI™ DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors |
| DIMENSIONS | Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
| MOUNTING | 8 mounting holes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
