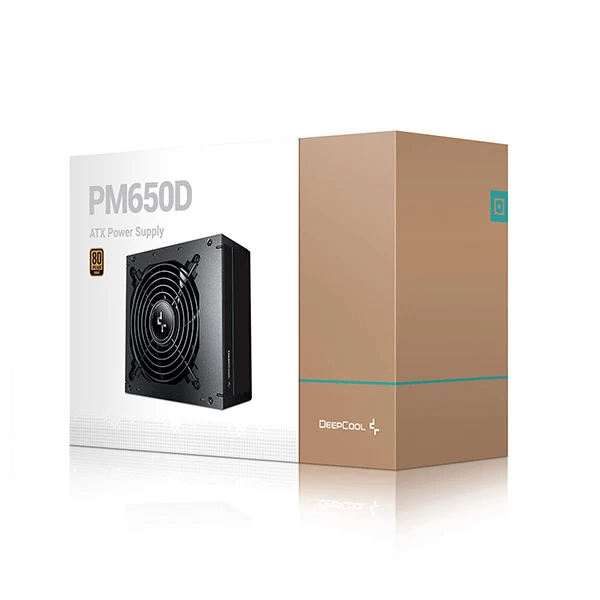

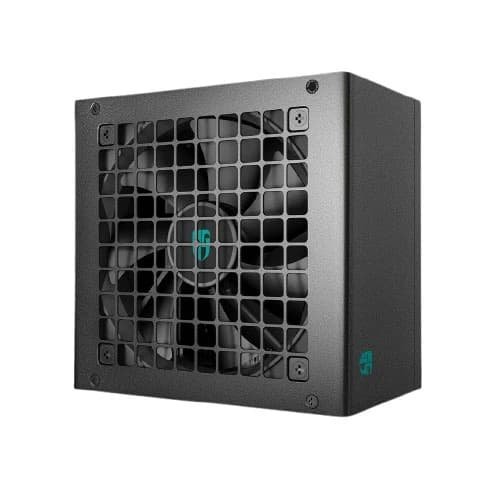

Deepcool PM650D 80 Plus Gold SMPS
Features:
DeepCool PM650D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.
80 PLUS Gold Certified
Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.
Quality topology
For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.
Built to spec
Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.
Efficiency throughout
The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards.
Peace of mind
Safeguard your power source with well-round circuit protection including OPP/OVP/SCP/OTP/OCP.
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | GOLD |
| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(75% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP |
| Operation Temperature | 0-40°C |
| Regulatory | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS |
| Erp Regulation | ErP(2014) |
| MTBF | 100,000 Hours |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Brands | Deepcool |
| Product Type | Gaming |
| Modular | Non-Modular |
| Wattage | 650W |
| PSU Certification | Gold |
| Warranty | 5 Years |
