About Anti-leak Tech Inside
After 3 years of R&D, DEEPCOOL launched the new standard of liquid cooling system – The Anti-leak Tech. The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, Deepcool is setting a new standard for liquid cooling systems.
Optimized Micro Water-channel
E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.
 |

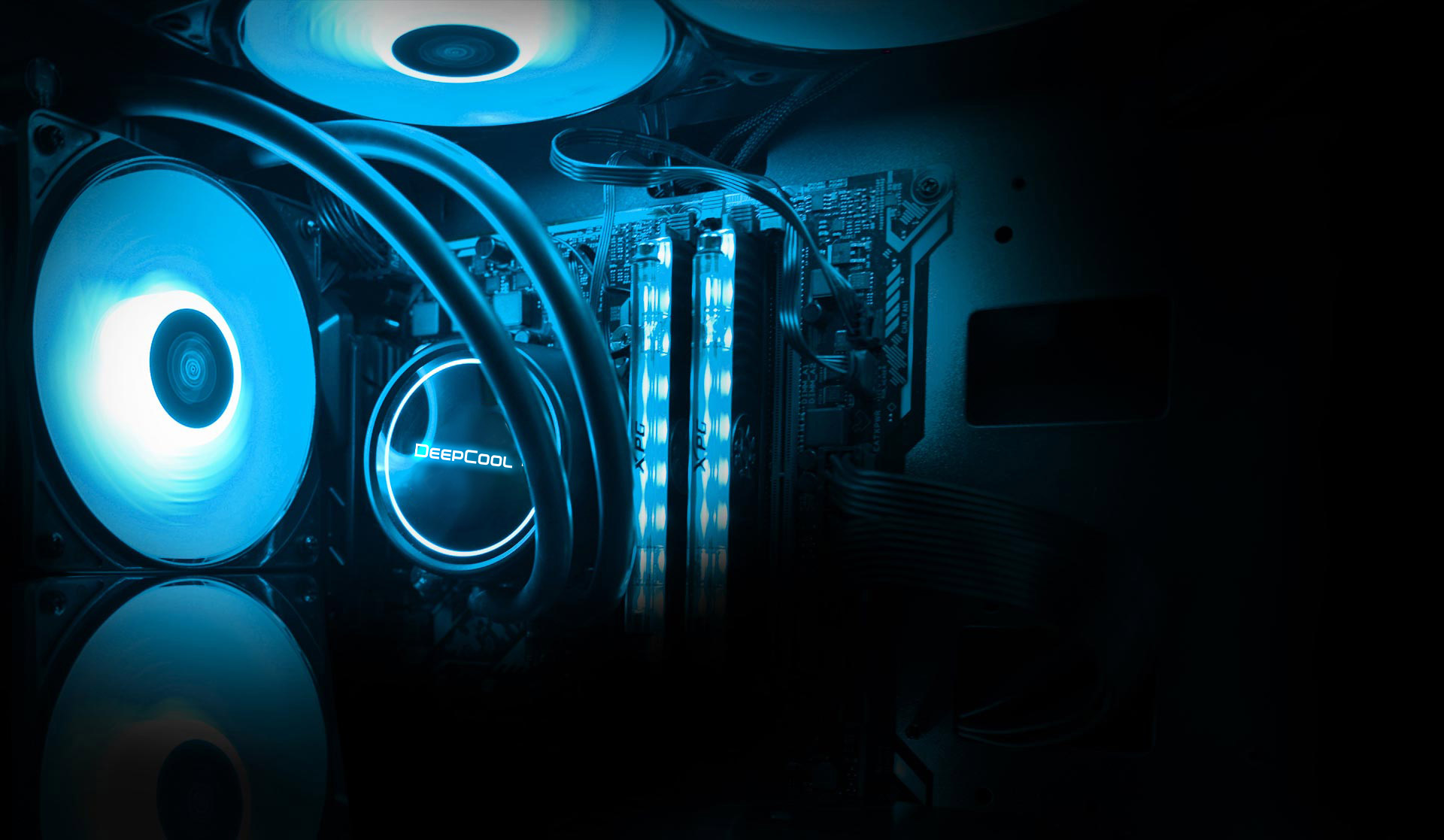

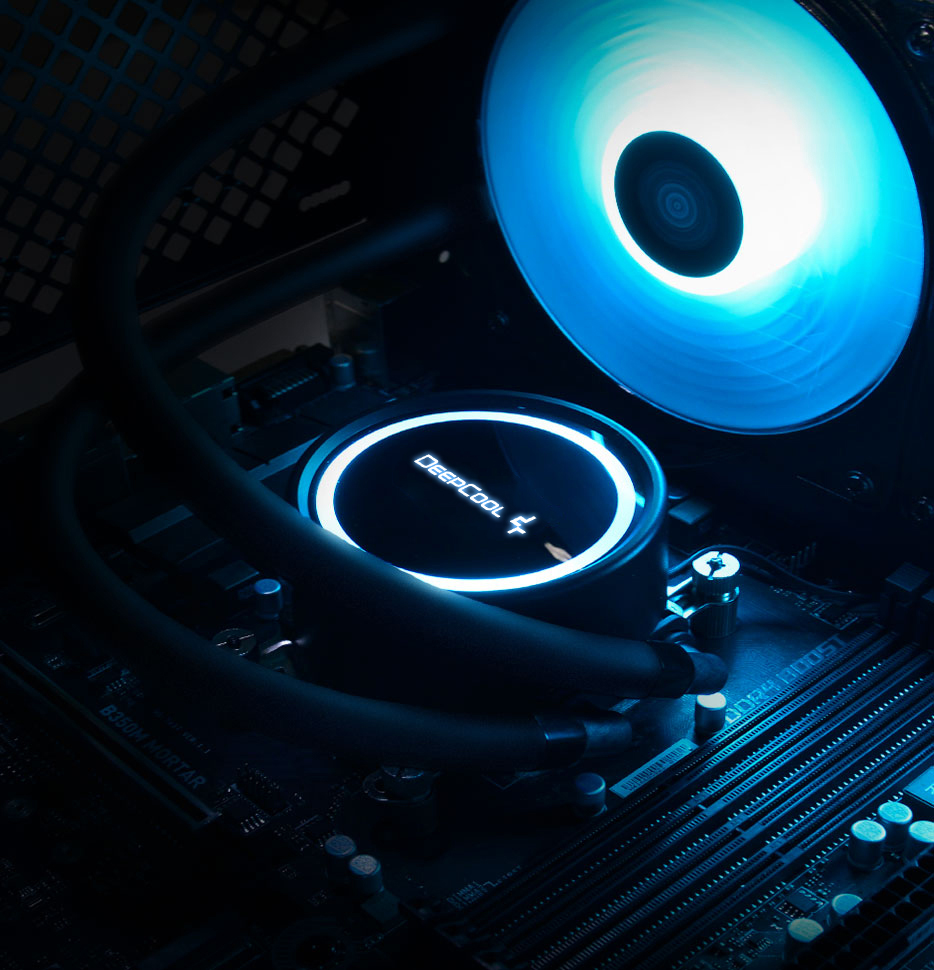

Blue LED Lighting
The brand new water block and fans are illuminated by static blue LEDs that powered by a 4pin PWM header. |
| Support Mainstream Intel & AMD Socket
Ready for easy mounting and unrestricted direction installation on mainstream sockets of Intel/AMD. |
 |
 |
PWM Control
One 120mm PWM fans with powerful performance and low noise level are included. |
 |
|
FEATURES
- Anti-leak Tech Inside system equipped.
- E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.
- The brand new water block and 120mm PWM fans are illuminated by static blue LEDs and powered by 4pin PWM headers.
- Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
- The ceramic axle bearings and axle cores guarantee an ultra-long service life.
Support Mainstream Intel & AMD Socket.
SPECIFICATIONS
| Model | DP-H12RF-GL120TB |
| Radiator Dimensions | 159×120×27 mm |
| Radiator Material | Aluminum |
| Tube Length | 315 mm |
| Pump Dimensions | 91×79×47 mm |
| Pump Speed | 2400 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.21 A±10% |
| Pump Power Consumption | 2.52 W |
| Fan Dimension | 120×120×25 mm |
| Fan Speed | 500-1800 RPM±10% |
| Fan Airflow | 69.34 CFM |
| Fan Air Pressure | 2.42 mmAq |
| Fan Noise | ≤30 dB(A) |
| Fan Connector | 4-pin |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.22 A±10% |
| Fan Power Consumption | 2.64 W |
| LED Type | BLUE LED |
| Compatibility |
|
| Warranty | 3 Years |
