Make It Yours.
We’re all about the things that make building a PC such a rewarding experience. The sense of achievement. The joy of making and creating something uniquely yours in form and function and, of course, the thrill of bringing your creation to life without melting your components.

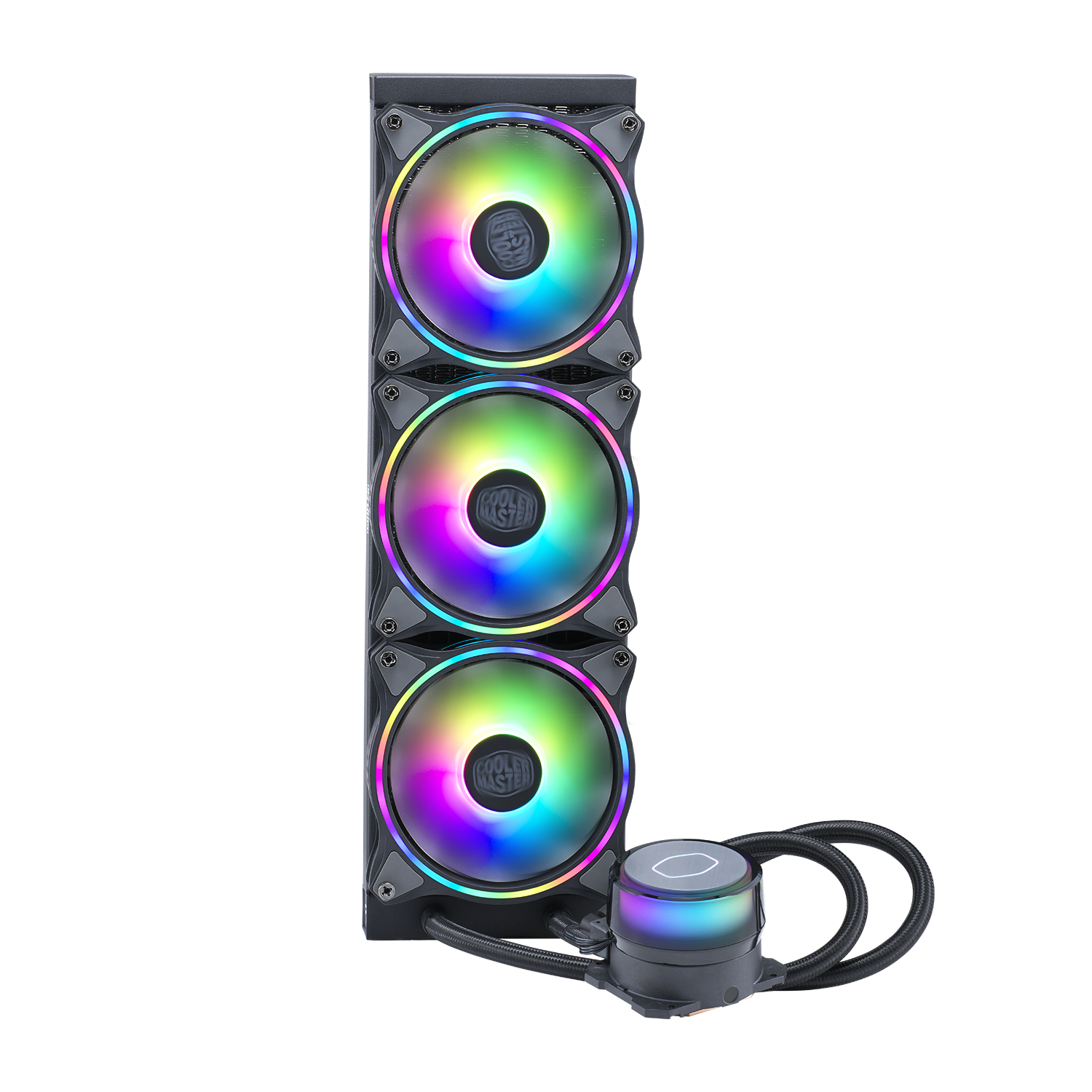

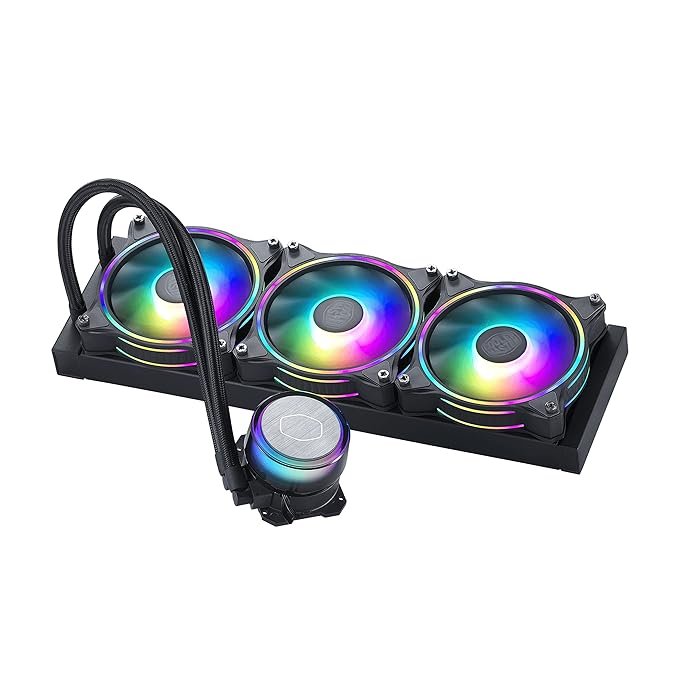

ML360 Illusion
See It To Believe It
The Cooler Master ML360 Illusion redefines lighting visuals with all-new designs. With 60 ARGB LEDs integrated into the all-new translucent pump, and MasterFan MF120 Halo fans for a spectacularly customizable option. The 3rd generation Dual Chamber Pump for excellent cooling performance.
Developed with new lighting technology, our Gen 2 ARGB, works with major motherboard supporting this new capability. Manage customization with the included Gen 2 ARGB controller and CM MasterPlus+ software.
- Translucent Dome
- MasterFan MF120 Halo
- 3rd Gen Dual Chamber Pump
- Gen 2 ARGB Controller
- Radiator Clearance (LxWxH): 394 x 119.6 x 27.2mm
- AMD Ryzen AM5/AM4,
- Intel LGA 1200/1151
|
|
|
|
|---|---|---|
360 RAD LAYOUTExperience optimized cooling efficiency with our custom low-resistance radiator, engineered to bolster higher flow rates and facilitate superior heat dissipation. Paired with our Halo 120mm fan, for a cooling proficiency that ensures performance and efficiency. |
3rd Gen Dual Chamber PumpExperience a quieter and more efficient cooling experience with our redesigned internal impeller and housing, that boosts cooling performance and efficiency while significantly reduces operational noise levels, providing a top-tier cooling capabilities. |
Gen 2 ARGB ControllerPersonalize your preferred lighting hues, adjust brightness, and access various effects effortlessly with just a simple touch – no ARGB-capable motherboard or software required. Enjoy seamless customization at your fingertips, for a tailor your lighting experience. |
| Model | MLX-D36M-A18P2-R1 |
| Exterior Color | Black |
| CPU Socket | LGA1700, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.1 inch |
| Pump Dimensions | 81.4 x 76 x 57.8 mm / 3.2 x 3 x 2.3 inch |
| Pump MTTF | >70,000 Hours |
| Pump Noise Level | 10 dBA (Max) |
| Pump Connector | 3-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 2.36 W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Fan Quantity | 3 PCS |
| Fan LED Type | Addressable Gen 2 RGB |
| Fan Speed | 650-1800 RPM (PWM) ± 10% |
| Fan Airflow | 47.2 CFM (Max) |
| Fan Noise Level | 30 dBA (Max) |
| Fan Pressure | 1.60 mmHâ‚‚O (Max) |
| Fan Bearing Type | Rifle Bearing |
| Fan MTTF | >160,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.25A |
| Fan Safety Current | 0.37A |
| RAM Clearance | N/A |
| Radiator Size | 360 |
| Series | MasterLiquid |
| Cooler Type | Liquid Cooler |
| Note | Compatible with AMD AM5 although the package may not stress it. |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
